Every homeowner understands the panic that ensues when the lights go out or the garage door won’t open. It is in these moments that the emergency release cord, the red rope with the handle suspended from the ceiling, becomes a lifesaver. This cord gives you the ability to sever the connection between the garage door and the electric opener so that you can manually open the door and retrieve your vehicle. But when the power comes back or the emergency ends, the garage door will not respond to the remote.
Quite often, we get calls from customers who have mastered the use of the manual release system but are not sure about returning their system to its normal state. Although it may look intimidating to play around with the mechanical parts of your garage door, resetting the opener should not be a problem. This guide has been created by Top Service Garage Door Repair to assist you in re-engaging the system so that your garage door operates automatically again. If you are looking for a garage door solution in Hollywood, our experts are ready to help!
Understanding the Emergency Release Mechanism

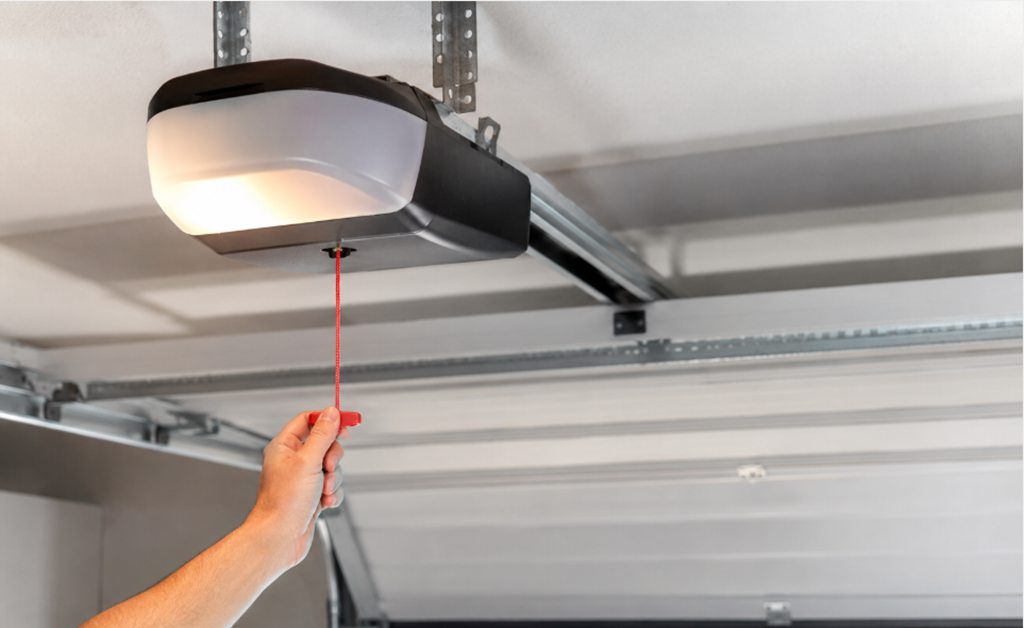

Before you perform a reset, it is a good idea to know what happened when you pulled the red cord on the garage door. The red cord is connected to a small lever on the trolley, which is the part of the device that moves back and forth on the rail of the garage door opener. When you pulled the red cord, you disconnected the trolley from the opener carriage. This knowledge is essential if you are wondering how to fix a garage door after pulling the red cord.
This placed the door in manual mode. Until you reconnect these two parts, the motor will go back and forth along the rail without actually moving the door. Re-engaging these parts basically reverses the process of pulling the cord. Here’s how to reset a garage door opener after pulling the red cord.
How to Re-Engage the Trolley
The first step in solving the system is to check the trolley system where the red cord is suspended. It is most probably connected to a spring-loaded lever, which moved down when the cord was pulled, thereby opening the door. The first step in resetting the system is to pull the cord not down but backwards towards the garage door opener motor.
You want the lever to click up into a horizontal position. This gets the spring mechanism ready to lock back into the opener carriage. With the lever in the correct position, you now have two ways to finalize the connection. You could either lift or lower your door by hand until you hear a loud clicking sound, which will indicate that the two parts are now locked in place.
Another way to finalize the connection would be to press the button on your wall console or remote. As your opener carriage moves along the track, it will hit the trolley and lock back into place. Following these steps will help you re-engage the garage door and return to automatic operation.
Testing and Reprogramming
As soon as you hear this click, it is time to test your system. Now, press your remote button to cycle your door fully open and fully closed. When your door goes through this motion effortlessly, you will know you’ve successfully reset your system.
Rarely, after an extended power outage or surge, the logic board within your garage door opener may have reset itself. If the trolley is properly connected and the remote isn’t working, it may be necessary for it to be reprogrammed. The “Learn” button can be found on the back of the motor unit. This button must be pressed along with the button on the remote at the same time. The LED on the motor unit will flash. This is often the final step in learning how to re-engage a garage door after pulling the red cord.
Troubleshooting Common Problems
If you have followed these steps and your door is not going to engage, then don’t force it. Often times the trolley is jammed or the spring that is inside the mechanism is broken. Sometimes it is a problem that has to do with a physically locked door. Make sure that any manual slide locks on the side of your door are not engaged before you run your opener.
What’s more, if the door is very heavy when you try to shift it by hand to reconnect the trolley, you could have a broken spring. This is a serious safety issue. If the door is too heavy to lift, do not proceed and call for assistance.
We Are Here to Help
Learning how to reset your garage door remote by means of the red cord is a skill that every homeowner should know. Not only will it save you time, but you’ll never again be locked inside your garage. But if your garage door won’t reset or if you feel that adjusting it is not safe, then it is better to call for professional help.
Our technicians at Top Service Garage Door Repair are experts in troubleshooting problems with openers, as well as ensuring that your door is properly balanced so that it can be used safely. Get in touch with us today if you need assistance with getting your garage door back on track!
